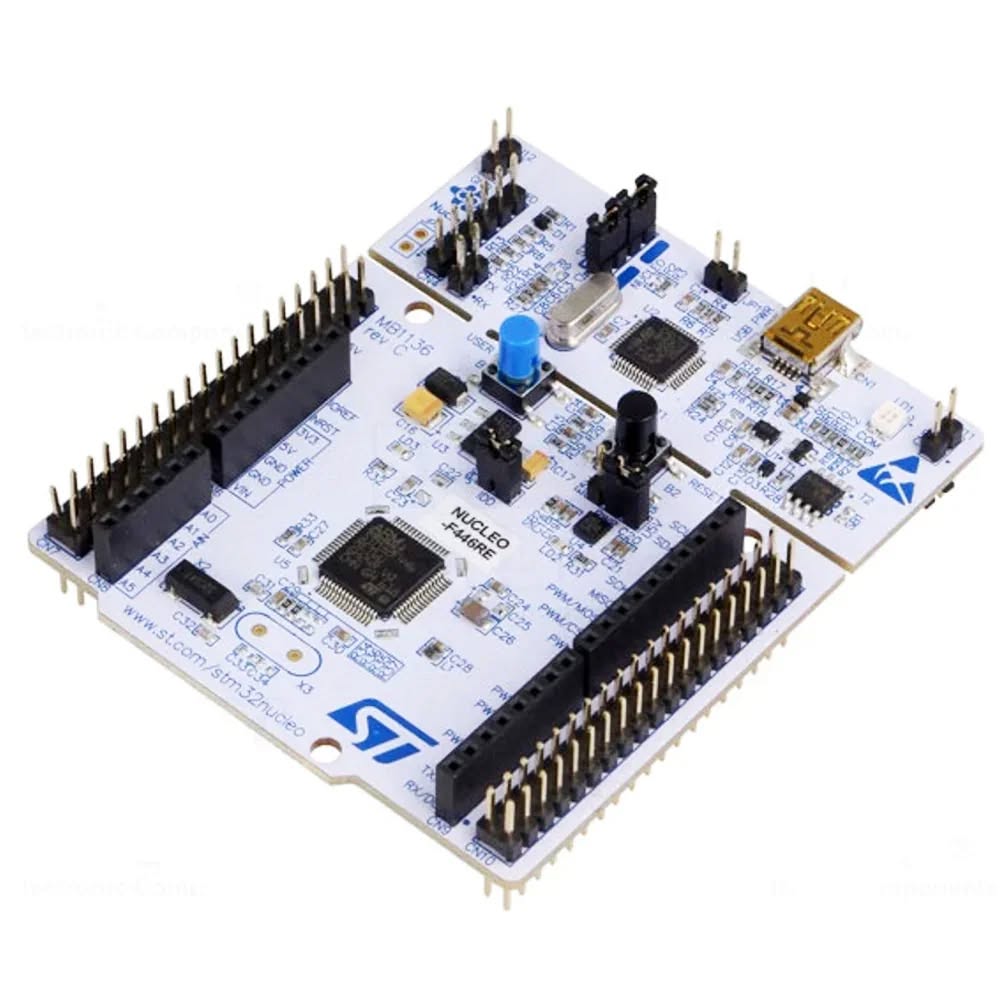

ST NUCLEO-F446RE Nucleo Development Board STM32F4 Series Arduino Compatible
LE 1,700.00
From the STM32F4 series, this STM Nucleo development board targets the STM32F446RE microcontroller and is a highly affordable and flexible Arduino compatible development board that allows you to try out new ideas, create prototypes and refine designs. The board gives a combination of performance, power consumption and features that will suit your development requirements.
The board features Arduino Uno V3 connectivity support, and ST morpho headers extend the functionality of the Nucleo open development platform via a wide choice of specialised shields. The inclusion of the ST-LINK/V2-1 debugger and programmer means that the board does not require external probing. To aid you in getting started there is a comprehensive software HAL library, together with various packaged software examples, as well as direct access to the ARM mbed online at http://mbed.org.
Features an STM32F446RE MCU
512Kbytes Flash memory
Arduino Uno V3 and ST morpho connectivity
ARM mbed
Onboard debugger/programmer
Power via USB, VBUS or external supply
LED Status indication
User and reset pushbuttons
USB re-enumeration capability
Support for a wide choice of IDEs
