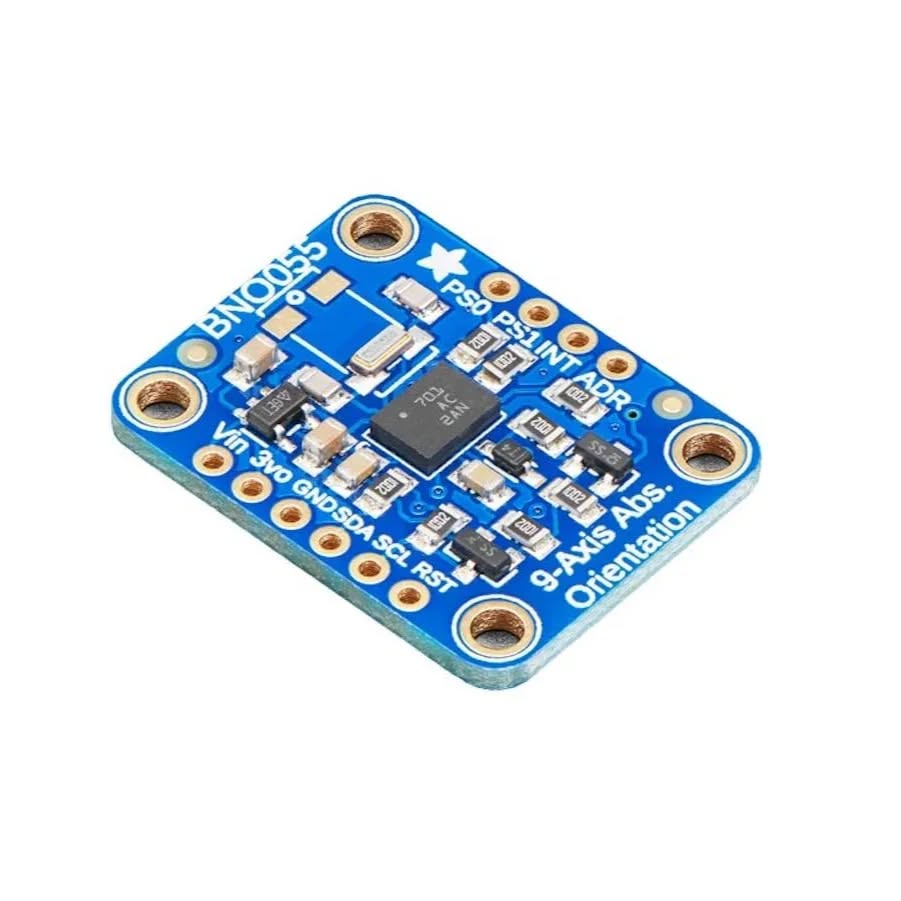

Adafruit 9-DOF Absolute Orientation IMU Fusion Breakout - BNO055

Struggling with sensor fusion in your embedded projects? The Adafruit 9-DOF IMU Breakout – BNO055 is your ultimate solution, . This advanced breakout board takes the complexity out of 3D orientation tracking by fusing data from an accelerometer, gyroscope, and magnetometer—all processed internally using Bosch’s high-performance ARM Cortex-M0 processor.

What Makes the BNO055 Special?

Forget writing complex algorithms. The BNO055 handles sensor fusion on-chip and outputs ready-to-use orientation data—making it ideal for robotics, drones, AR/VR, motion tracking, and wearable tech.

Sensor Output Data:

Euler Angles (100Hz): 3D orientation across a 360° sphere

Quaternions (100Hz): High-accuracy orientation output

Angular Velocity (100Hz): Rotation rate in rad/s

Acceleration (100Hz): Combined gravity and motion data

Magnetic Field (20Hz): Magnetic strength in µT

Linear Acceleration (100Hz): Motion minus gravity

Gravity Vector (100Hz): Gravity-only acceleration

Temperature (1Hz): Ambient temp in °C

Simply connect the sensor via I2C and start receiving real-time orientation data in minutes—no algorithm tuning required.

Key Features:

Fully integrated 9-DOF IMU sensor

Plug-and-play via I2C with Arduino, Raspberry Pi, and more

Compact breakout board with ready-to-use libraries from Adafruit

Bosch BNO055 chip with built-in sensor fusion firmware

Ideal for projects involving motion sensing, navigation, and orientation tracking

Package Includes:

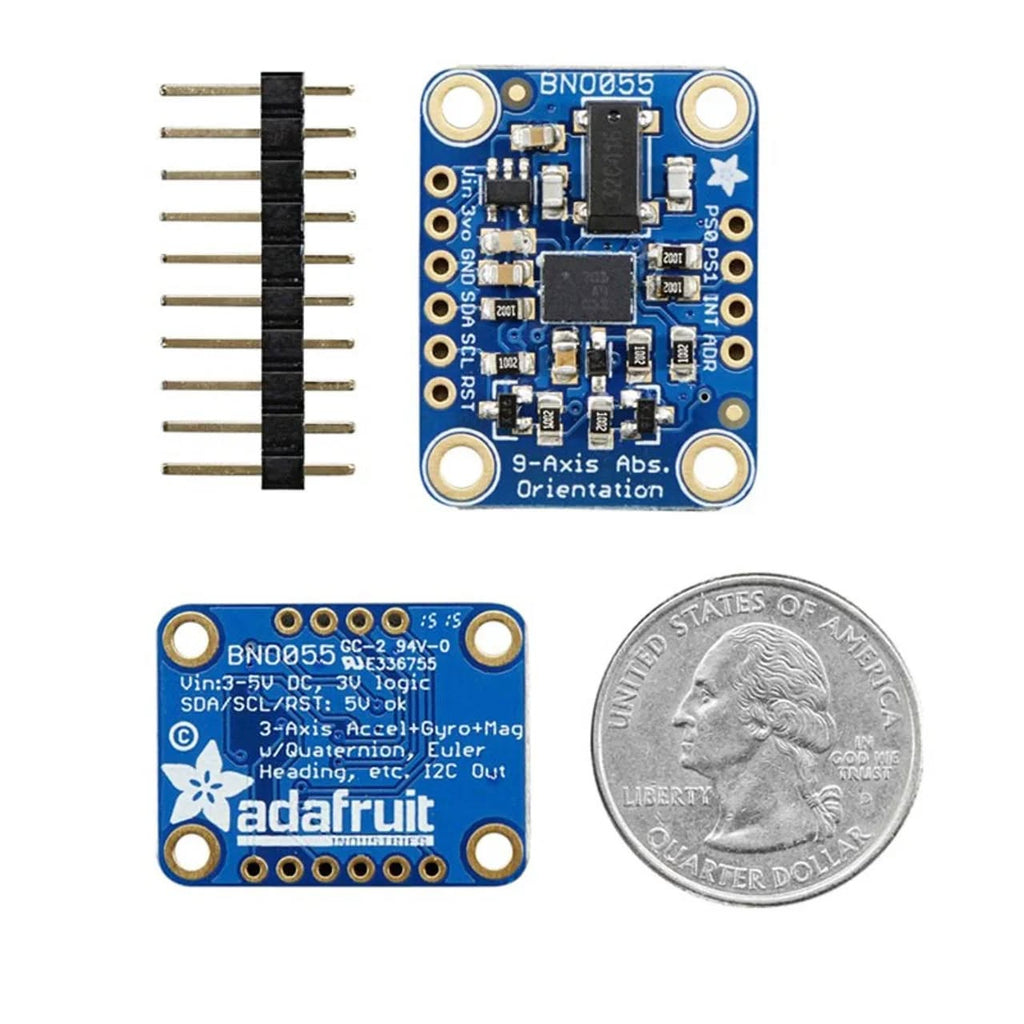

1x Adafruit BNO055 9-DOF IMU Fusion Breakout Board

Start building smarter, faster orientation-aware systems with the BNO055
