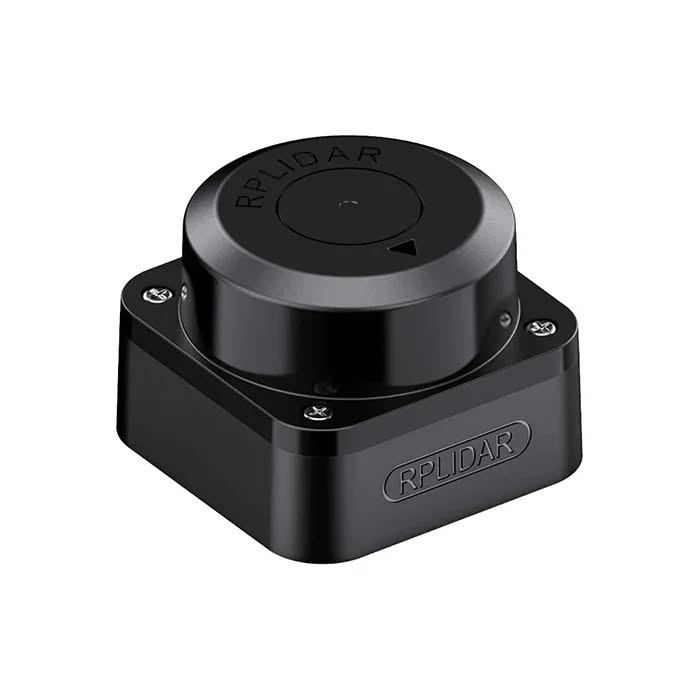

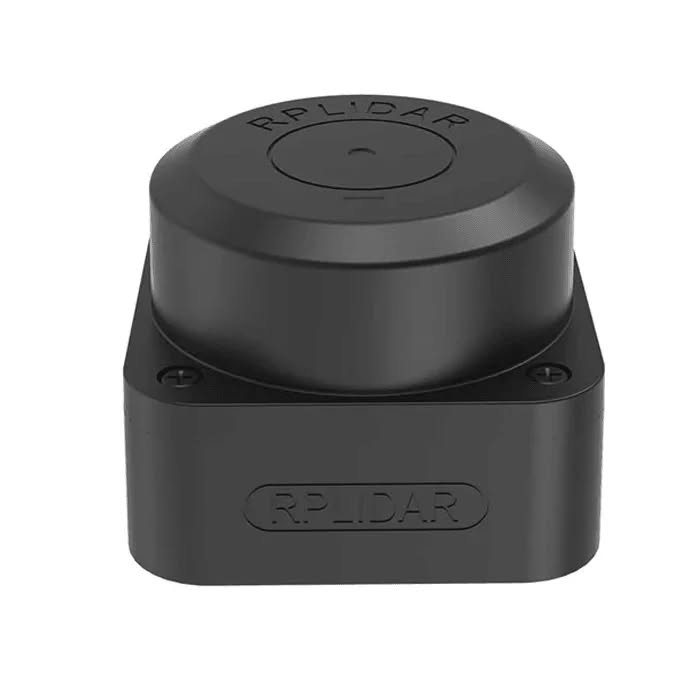

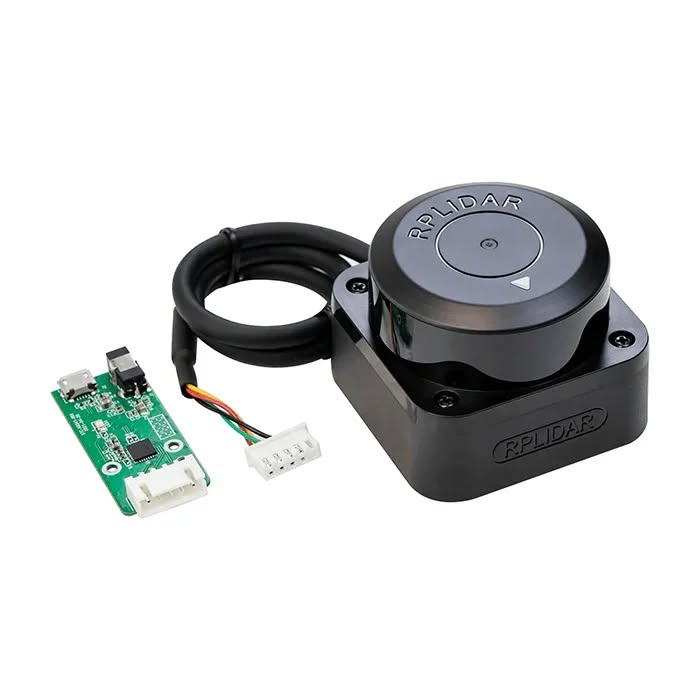

RPLidar C1 - 360 Degree LiDAR Laser Range Scanner (12m)
LE 5,200.00
The RPLIDAR C1 is a new generation fusion-type DTOF (Direct Time of Flight) laser scanner from SLAMTEC. This advanced LIDAR system excels in high-definition detection of small and nearby objects, offering superior anti-interference and anti-adhesion capabilities. With a measurement radius of 12 meters, a sampling frequency of 5000 times per second, and 360-degree full-range laser scanning, the compact and agile design of the RPLIDAR C1 is ideally suited for applications such as robot positioning, mapping, navigation, and obstacle avoidance in a variety of environments.
SPECIFICATION
Distance Range: White object: 0.05-12 meters (under 70% reflection),
Black object: 0.05-6 meters (under 10% reflection)
Sample Rate: 5KHz
Scanning Frequency: 8~12Hz, 10Hz@typical
Angular Resolution: 0.72°@typical
Scan Field Flatness: 0°~1.5°
Communication Interface: TTL UART
Communication Speed: 460800
Accuracy: ±30mm
Resolution: 15mm
Degree of Protection: IP54
Ambient Light Limit: 40000
luxWeight: 110g
Working Temperature Range: -10~40°C
Storage Temperature Range: -20~60°C
HD High Definition and Cost-Effective
RPLIDAR C1 integrates the technical advantages accumulated by SLAMTEC in triangulation and DTOF ranging for many years, enabling C1 to meet the requirements of robot positioning, mapping, and navigation in terms of ranging accuracy, distance measurement, anti-interference, and anti-adhesion performance.
RPLIDAR C1 HD High Definition and Cost-Effective
Enhanced Perception but Not Limited to Flat Surfaces
With SLAMTEC's self-developed SL-DTOF ranging technology, RPLIDAR C1 not only provides position information data but also offers reflectivity data and 2.5D multidimensional information, providing you with more reference points.
RPLIDAR C1 Enhanced Perception but Not Limited to Flat Surfaces
12m Radius Range and Easy to Handle Various Object Ranging Challenges
RPLIDAR C1 has a measuring distance of up to a radius of 12 meters and a low blind range of only 0.05 meters. It easily accomplishes scanning and measuring objects at various distances and achieves obstacle avoidance.
RPLIDAR C1 12m Radius Range and Easy to Handle Various Object Ranging Challenges
Compact in Size and Easy to Integrate
RPLIDAR C1 not only delivers powerful performance but also features a compact and agile design. It is small and has low levels of noise and vibration, making it easy to integrate into various applications. Its compact size and versatility open up a wide range of possibilities and uses.
RPLIDAR C1 Compact in Size and Easy to Integrate
High Reliability and Compatibility with the SLAMTEC ecosystem
RPLIDAR C1 exhibits high compatibility with SLAMTEC's software and hardware interfaces, allowing seamless integration into the SLAMTEC ecosystem. It also offers a smooth transition when switching from existing SLAMTEC products.
RPLIDAR C1 High Reliability and Compatibility with the SLAMTEC ecosystem
Comprehensive SDK tutorial and Support ROS
SLAMTEC provides SDK development packages that can run on different platforms such as x86 Windows, x86 Linux, and arm Linux. It supports ROS and ROS2 operating systems, assisting customers in development and integration across various operating systems and architectures.
