Raspberry Pi Official 7" Touchscreen Display

The 800 x 480 display connects via an adapter board which handles power and signal conversion. Only two connections to the Pi are required; power from the Pi’s GPIO port and a ribbon cable that connects to Raspberry Pi boards with a DSI connector.

Touchscreen drivers with support for 10-finger touch and an on-screen keyboard are integrated into the Raspberry Pi OS for full functionality without a physical keyboard or mouse.

Turn your Raspberry Pi into a touchscreen tablet, infotainment system, or standalone device

Truly Interactive - supports a virtual ‘on-screen’ keyboard, so there is no need to plug in a keyboard and mouse

Make your own ‘Internet of Things’ (IoT) devices including a visual display. Simply connect your Raspberry Pi, develop a Python script to interact with the display, and you’re ready to create your own home automation devices with touchscreen capability

A range of educational software and programs available on the Raspberry Pi are touch-enabled, making learning and programming easier on the Raspberry Pi

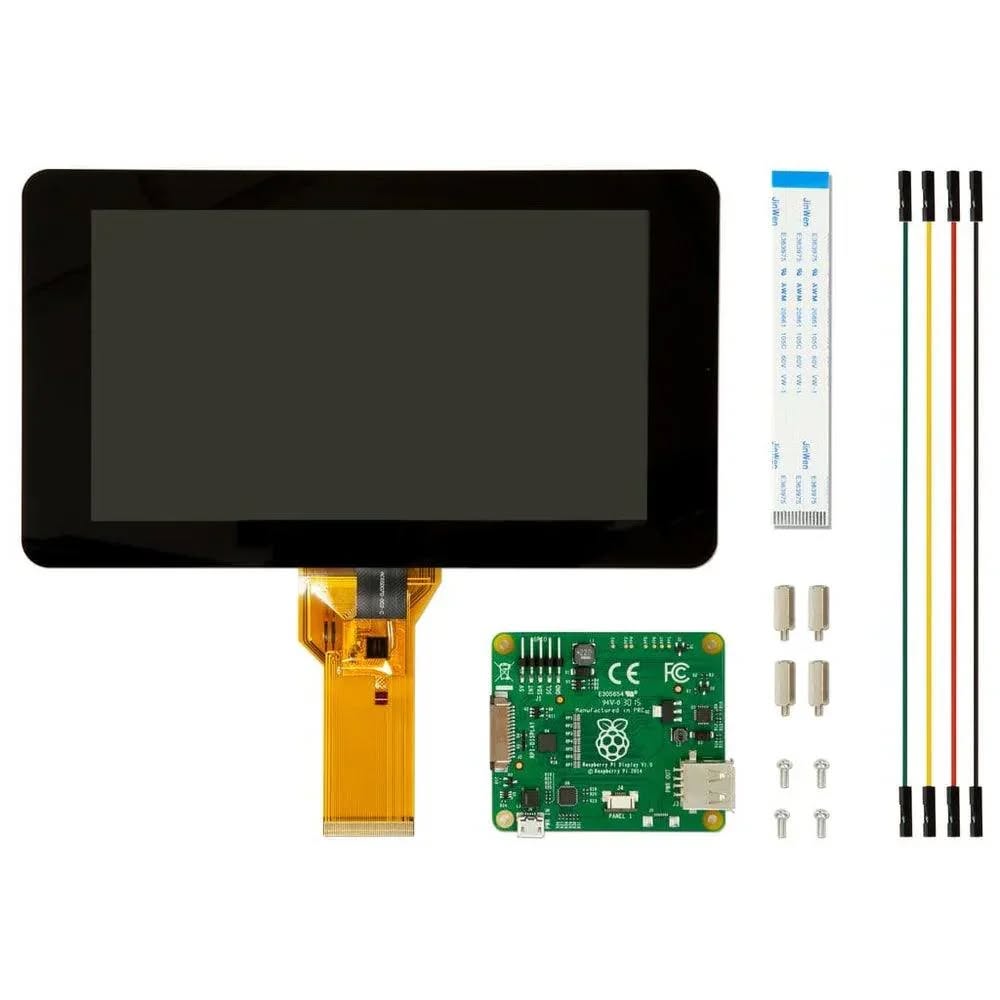

Kit Contents

7” Touchscreen Display

Adapter Board

DSI Ribbon cable

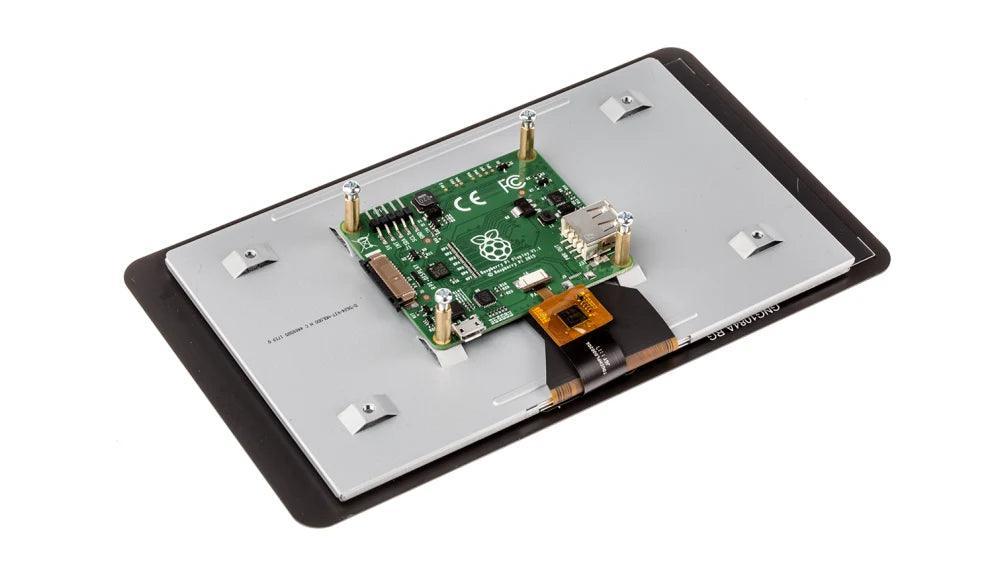

4 x stand-offs and screws (used to mount the adapter board and Raspberry Pi board to the back of the display

4 x jumper wires (used to connect the power from the Adapter Board and the GPIO pins on the Pi so the power is shared across both units)

Specifications

7” Touchscreen Display.

Screen Dimensions: 194mm x 110mm x 20mm (including standoffs)

Viewable screen size: 155mm x 86mm

Screen Resolution 800 x 480 pixels

10-finger capacitive touch.

Connects to the Raspberry Pi using a ribbon cable connected to the DSI port

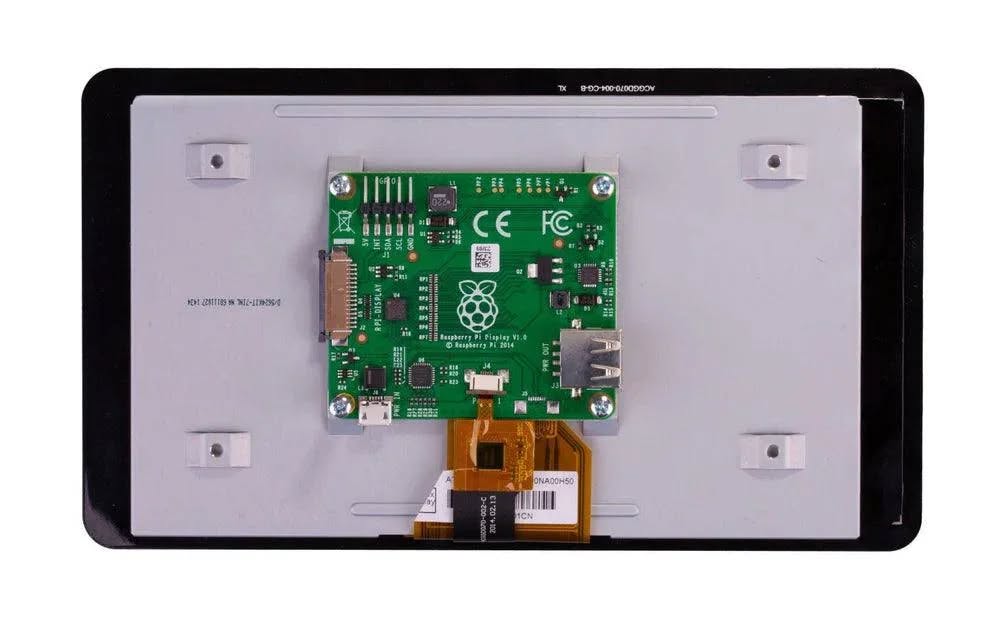

An adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi
