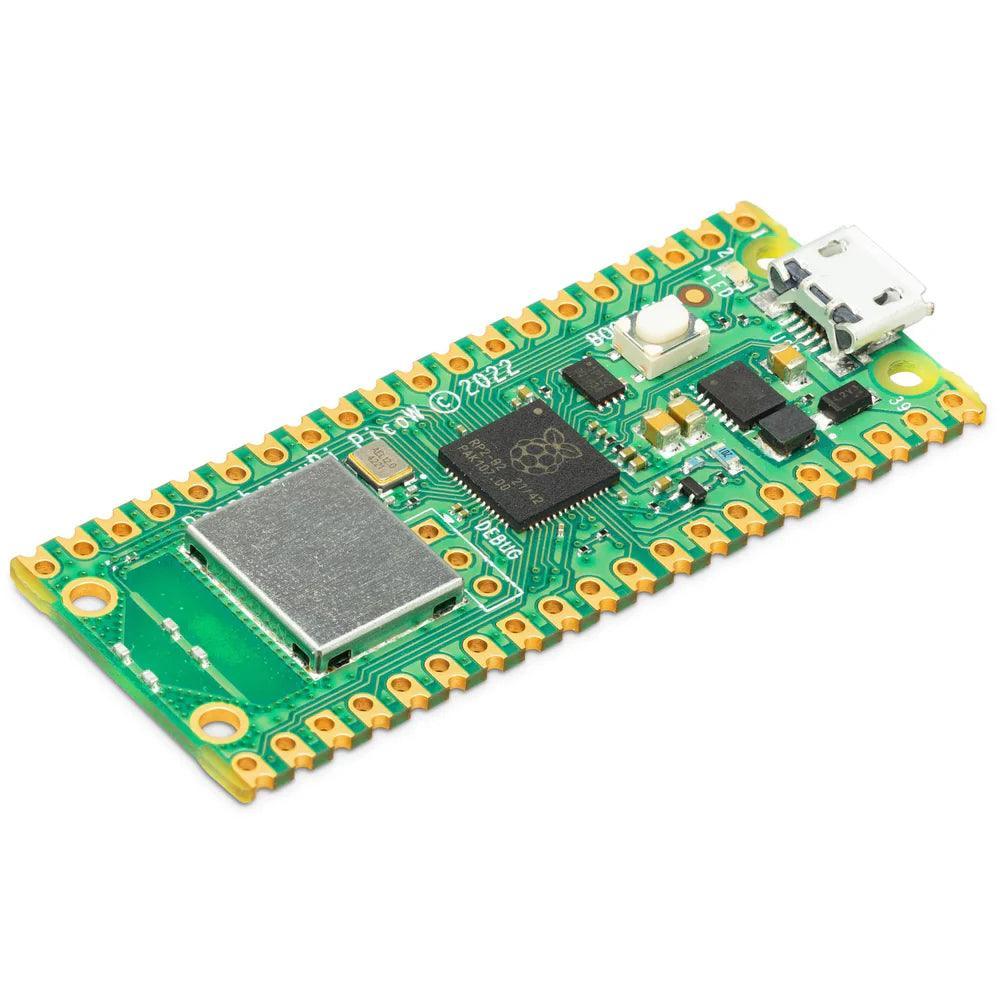

the new Raspberry Pi Pico W

The addition of wireless connectivity opens up the Pico W to a vast new range of projects such as remote sensor readings, remote control, home automation, mini web servers, wireless GPIO pin control and much, much more!

At the heart of the Pico W is the RP2040 – the same chip used in the original Raspberry Pi Pico, featuring two ARM Cortex-M0+ cores clocked at 133MHz; 256KB RAM; 30 GPIO pins; and a broad range of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for code and data storage.

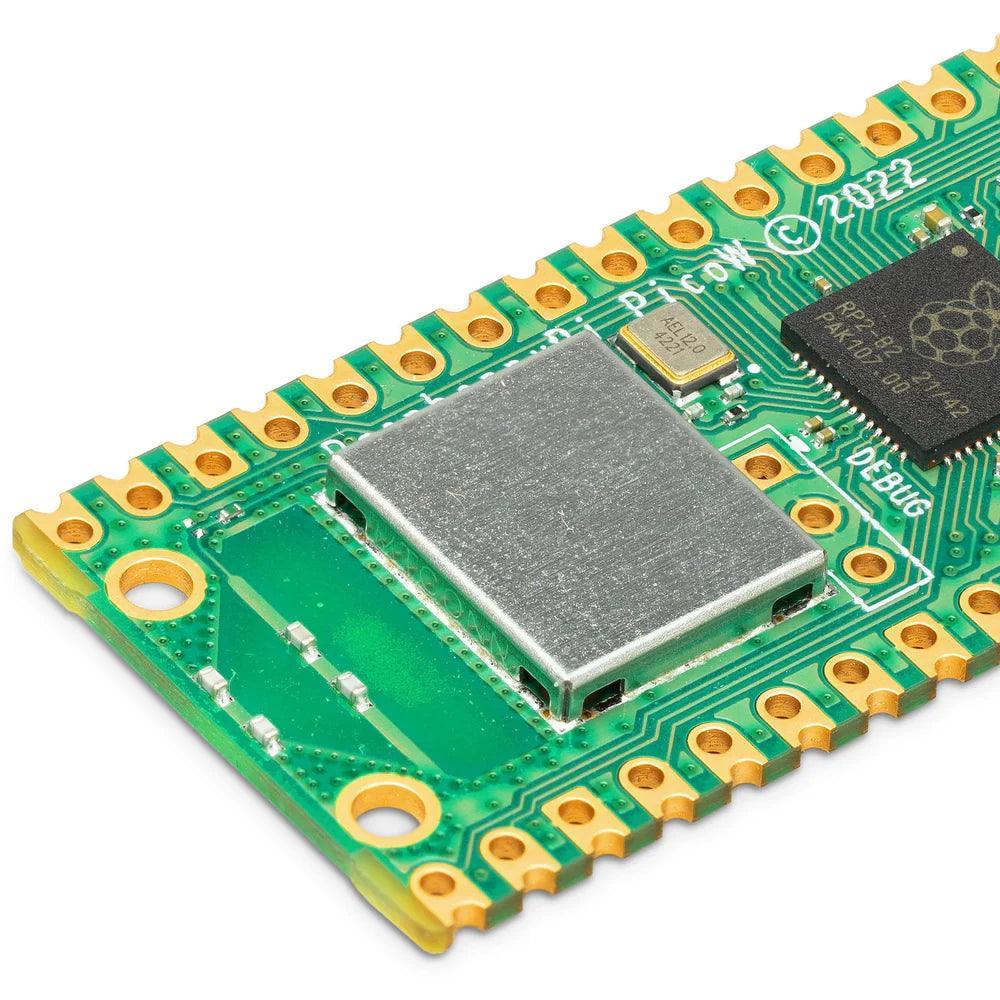

WiFi is enabled via the use of an Infineon CYW43439 wireless chip. The CYW43439 supports IEEE 802.11 b/g/n wireless LAN, and Bluetooth 5.2.

Raspberry Pi Pico W Specifications

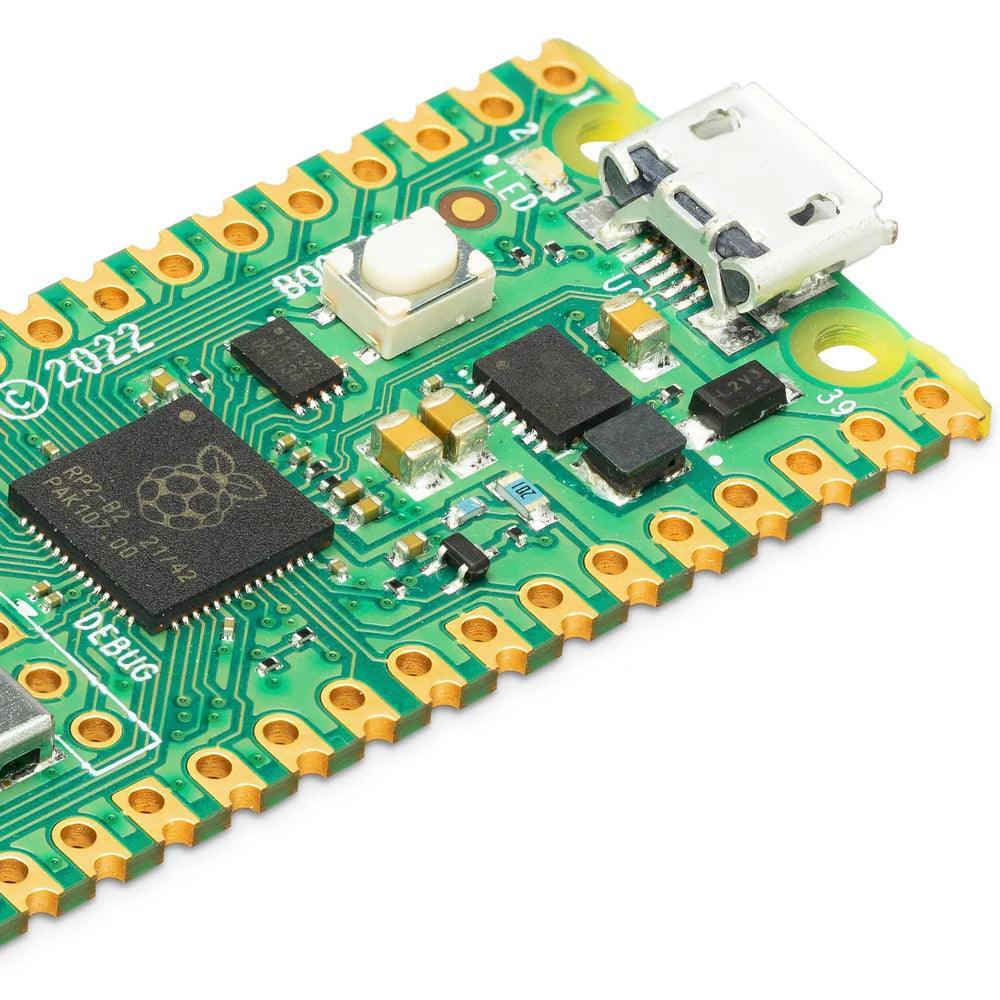

The main chip on board is the RP2040 made by Raspberry Pi (their first in-house microcontroller chip!) and is a dual-core ARM Cortex M0+ processor, with a flexible clock running up to 133MHz. WiFi is enabled via the use of an Infineon CYW43439.

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz

264kB of SRAM, and 2MB of onboard Flash memory

Infineon CYW43439 wireless chip

IEEE 802.11n wireless LAN

Bluetooth 5.2

WPA3

SoftAP (up to 4 clients)

Onboard antenna licenced from ABRACON (connected via SPI to the RP2040)

Castellated module allows soldering directly to carrier boards

USB 1.1 Host and Device support

Low-power sleep and dormant modes

Drag & drop programming using mass storage over USB

26 multi-function GPIO pins

2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels

Real-time clock (RTC)

Temperature sensor

Accelerated floating-point libraries on-chip

8×Programmable IO (PIO) state machines for custom peripheral support

Dimensions (WxLxH)

Pico W: 21mm x 51.3mm x 3.9mm

Pico WH: 21mm x 51.3mm x 12.9mm

Weight

Pico W: 4g

Pico WH: 6g

Country of origin

Pico W: Japan

Pico WH: Great Britain

Product number:

Pico W: SC0918

Pico WH: SC0919
